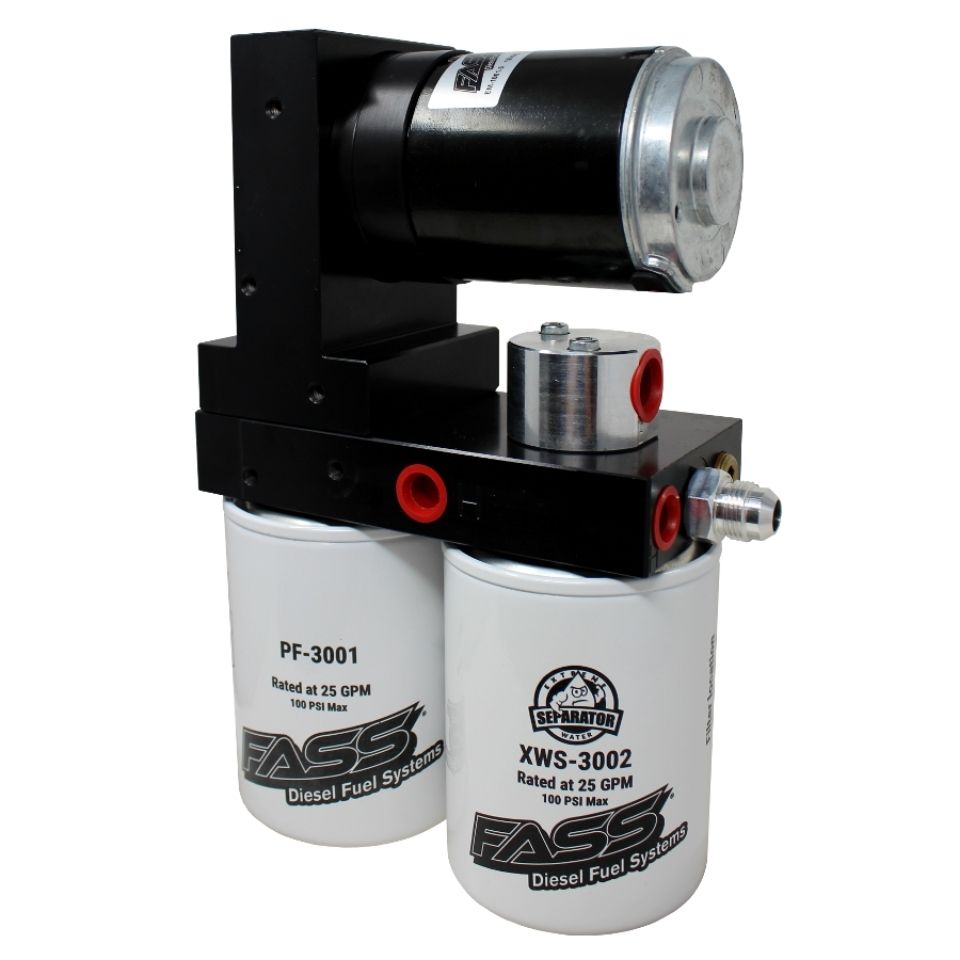

01-10 Duramax FASS Titanium Signature No Drop Series PLUS 165GPH Fuel System-1000HP

FASS No Drop Titanium Signature Series Plus 165GPH Lift Pump Kit (01-10 Duramax)

Includes Fuel Sump Kit (No Tank Drop Install)

The FASS No Drop Titanium Signature Series Plus 165GPH kit is the easiest way to install a high flow lift pump on your Duramax without dropping the fuel tank. This package includes the full TSPC10165G 165GPH fuel system plus the No Drop sump kit, giving you a clean, straightforward install and serious filtration protection.

Rated at 165 gallons per hour, this system supports up to 1000 HP, but it also works perfectly fine on stock trucks and gives you plenty of room to grow when you’re ready to add power.

This kit is designed to remove what destroys injection systems over time — water, debris, and air/vapor — while keeping fuel supply consistent under load.

Fits

• 2001–2010 GMC / Chevrolet 2500HD / 3500HD

• 6.6L Duramax

Part Number: NDTSPC10165G

Note: Installation on cab & chassis trucks may require modifications.

Why “No Drop”?

Most lift pump installs require dropping the tank. The No Drop kit includes a sump system that allows fuel pickup from the bottom of the tank without removing the tank, saving time and simplifying the install.

Key Benefits

• 165GPH flow rating (supports up to 1000 HP)

• Works great on stock trucks and provides room to grow

• No tank drop install (includes sump kit)

• Removes air/vapor, water, and debris before it reaches the injection system

• Improves fuel supply under load (towing, racing, daily driving)

• Helps extend life of injectors and fuel system components

• Clean install hardware with ORB fittings, black anodized fittings, and black fuel line

Features

• FASS Titanium Signature Series Plus 165GPH fuel system

• FASS Fuel Sump Kit included

• 2 micron filtration

• Built in water separation

• FASS air/vapor separation technology

• Optional fuel heater and gauge port options available

• Limited Lifetime Warranty (with registration)

What’s Included

This kit includes:

• (1) FASS Titanium Signature Series Plus 165GPH Fuel System (TSPC10165G)

• (1) FASS Fuel Sump Kit (No Drop installation)
