BEANS

BEANS DIESEL 280002 MULTI-FUNCTION FUEL TANK SUMP UNIVERSAL - MOST DIESEL FUEL TANKS (CUTTING REQUIRED)

BEANS DIESEL 280002 MULTI-FUNCTION FUEL TANK SUMP UNIVERSAL - MOST DIESEL FUEL TANKS (CUTTING REQUIRED)

Regular price $191.72 USD
Regular price Sale price $191.72 USD
Sale Sold out
Shipping calculated at checkout.

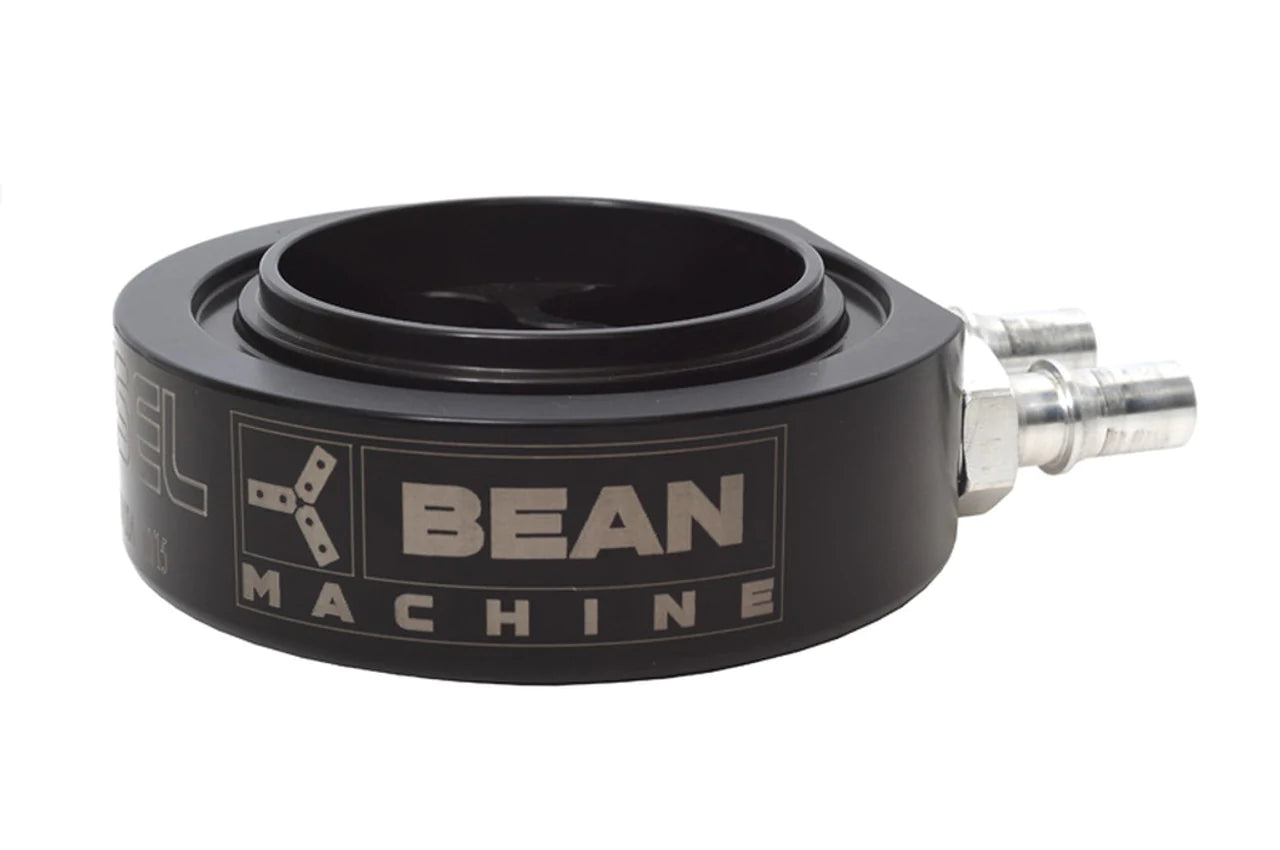

Made from 6061 Billet aluminum, this guy is built like a tank and is super simple to install. Just like our original and revolutionary design,  install is as easy as it gets, requiring a single 3" hole and a single bolt. This means super easy and quick install time as well as minimal places to develop a leak.

All of our tank sumps come with a 3" hole saw, (so no extra trips to the hardware store), as well as all stainless or aluminum hardware.  The single O-ring design creates the perfect seal insuring you have zero leaks. We manufacture the only tank sump on the market that uses O-ring Boss style fittings instead of a pipe thread style fitting. This means less possibility for leaks and a perfect seal.   Our fittings can be used with a quick disconnect fitting (found on many aftermarket fuel systems) or 1/2" push-lock style fuel hose.  That means it is going to be plug and play for the largest percentage of aftermarket fuel systems out there! We even include a plug if you only need a single outlet style sump.



100% USA manufactured product from the company that invented the single hole design sump!



Functions:

 -Supply/Return.

or

-Single outlet setup.

or

-For your higher horsepower trucks, dual outlet to get the extra fuel needed.



 Features:

 -Uses all available fuel from the tank. No issues with sucking air when below 1/8th of a tank. Perfect for use with today's high flow lift pump systems. (Airdog, FASS, etc)

-Sediment bowl area machined inside of the sump to reduce the amount of sediments that get to your filter system.

-Stainless Drain Plug for future tank servicing or sediment draining.

-Single bolt design that allows for 5 minute install. A single bolt offers less chances for leaks than tanks sumps using multiple bolts drilled into the tank.

-Stainless Steel hardware, High Flow aluminum Quick Disconnect/pushlock fittings, and a -8 ORB Plug are provided in the kit.

-Comes with 3” hole saw to make the only hole needed in your tank for install.

-Inner ring designed to go through the 3” hole so tank does not need to be dropped.

-O-ring design for a perfect seal.

-Super strong 1 piece machined billet design.

-Can be installed on any fuel tank with an available 4” diameter flat area

-Supporting the Company that Invented the Single Hole Design Sump!

-Can be used on metal or plastic tanks

-Works on gas or diesel applications

-DESIGNED AND MANUFACTURED AT OUR FACILITY, IN WOODBURY,TN USA!!!

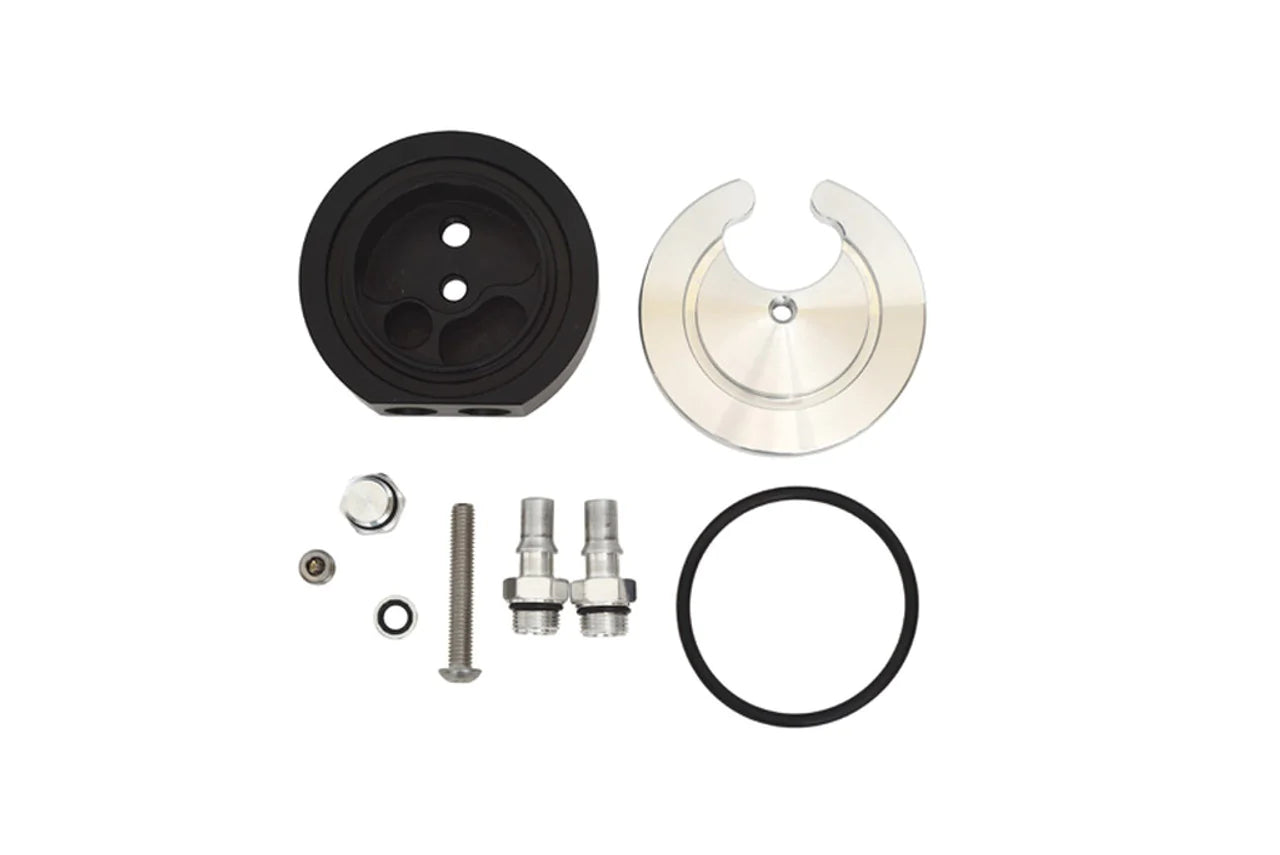

Kit Includes:

-Sump Body

-Sump "Pacman" in Tank Backer Ring

-3" Hole Saw (Plastic Tank Only. If Installing On Metal Tank You Will Need To Purchase A Metal Hole Saw)

-Stainless Steel Bolt

-Sealing Washer

-O-Ring

-(2) -8 O-Ring Boss (ORB) to 1/2" QDC/Push-lock Fittings (With O-Ring)

-(1) -8 O-Ring Boss (ORB) Plug For Single Outlet Operation (With O-Ring)

-1/4" NPT Stainless Steel Drain Plug Fitting
