DPC BILLET S400 T4 PEDESTAL

Duramax Billet T4 Wastegate Provisioned Pedestal by DP Customs. After months of engineering, DPC came up with a pedestal that covered every problem seen with competitors. No more cracking, no more clearance issues and easy wastegate plumbing to name a few! Your 44/45mm wastegate will clear the fuel rail and fuel rail sensor (if applicable) and put the discharge opening in a perfect spot for dumping into the atmosphere through the hood or into your exhaust through the downpipe. If you do not run a wastegate, simply cap the provision off (caps sold separately) and enjoy a QUALITY billet T4 pedestal. With an easily removable base, this pedestal can also be adapted to use on L5P Duramax blocks (L5P base sold seperate).

These are kept in stock!

Features:

• MADE IN THE USA

• 5 axis billet machined

• removable and adaptable base for fitment and use with the L5P Duramax block (sold separately)

• 6.75” height for use with most all standard 01-16 Duramax S400 kits

• 1/2” thick bolt mounting base

• thick exhaust channel walls preventing cracking and keeping thermal insulation

• 44/45mm wastegate provision flange

• 3/4” thick top T4 flange to withstand heat and prevent warpage

• -12AN turbo oil drain clearance

• standard m10x1.5 thread

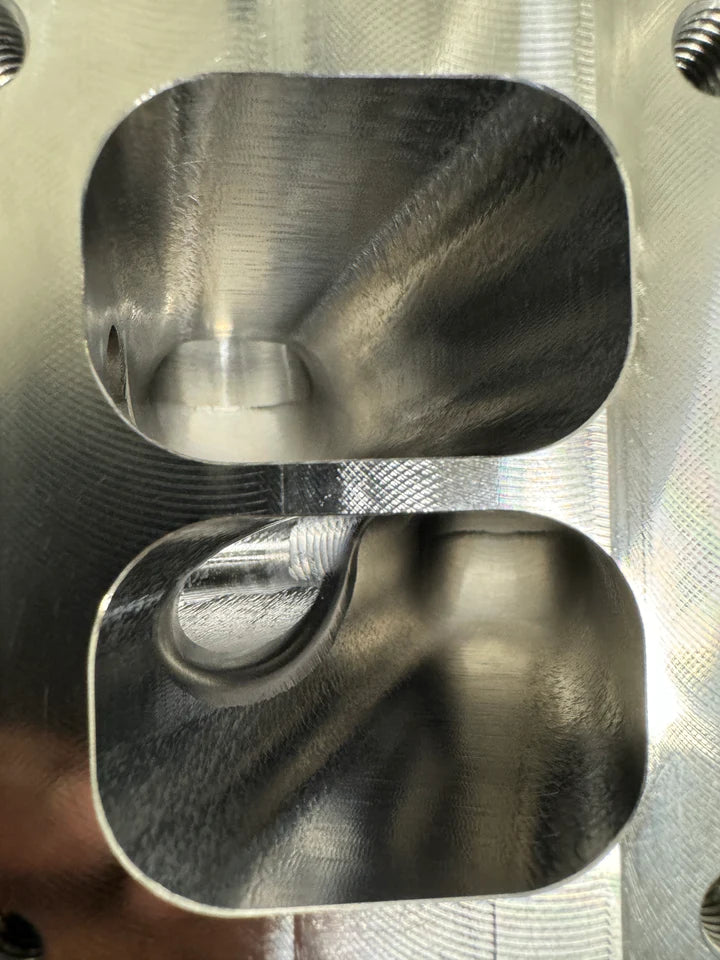

• true flowing channel design with no obstructions for turbulence or bottle necking

• LB7 intake runner clearance



Install Kit:

All gaskets/hardware needed to install the DP Customs Billet T4 Wastegate Pedestal. This kit also includes a billet wastegate provision plug if you are not using a wastegate.

Borg Warner T4 Gasket

M10x1.5 Studs/Nuts

Turbosmart 44/45mm Clamp

UpPipe Gaskets

Pedestal/Block Bolts

*TACK WELD OR STAKE BASE ALLEN BOLTS TO PREVENT FROM BACKING OUT*

This product is intended for race/offroad use only, use of vehicle with product installed on public road/highway is STRICTLY FORBIDDEN.
