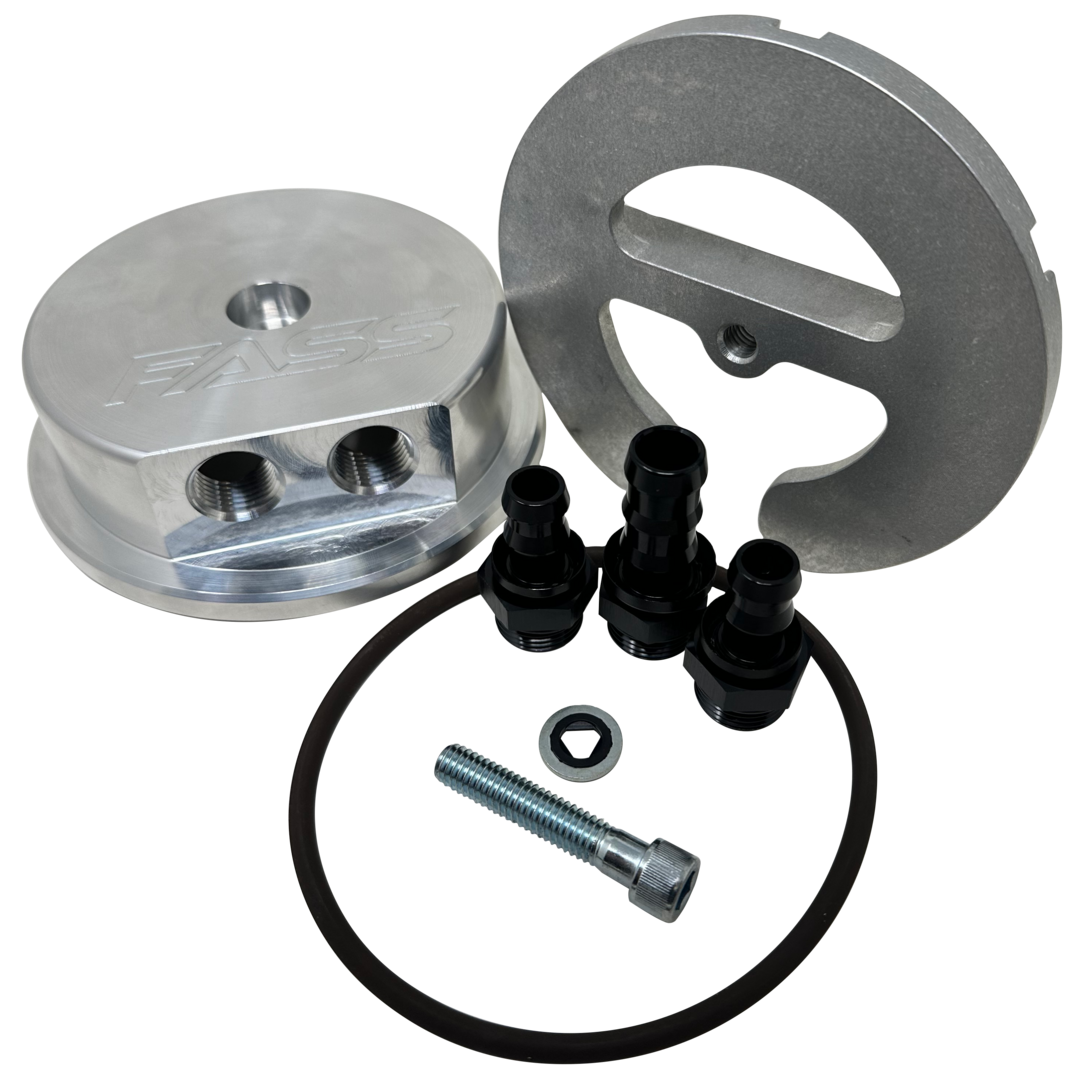

FASS Fuel Sump Kit

FASS Diesel Fuel Sump Kit (Return Style)

No Tank Drop Install | Universal Fitment

The FASS SK5501 Diesel Fuel Sump Kit is designed to simplify lift pump installs and improve fuel pickup by pulling fuel from the lowest point of the tank. This kit is a universal fit for most Ford Powerstroke, GM Duramax, and Dodge Ram Cummins applications.

The Return Style sump design requires only one hole to be drilled in the fuel tank and allows the FASS return line to be plumbed directly back into the sump using the built-in return port. The sump also places the suction port at the lowest point of the tank to maintain consistent fuel supply and eliminate common low-fuel issues.

The extra large bowl acts as a reservoir, helping keep fuel supply stable during heavy braking, acceleration, and when running low on fuel.

Key Benefits

• No tank drop installation

• Lowers fuel pickup to the bottom of the tank

• Helps eliminate ¼ tank fuel supply issues

• Reservoir style bowl for consistent fuel supply under load

• Easy installation with a unique single bolt design

• Designed for high volume fuel systems

Features

• ½” NPT suction port

• ½” NPT return port

• Extra large fuel bowl / reservoir

• Constructed from 6061 billet aluminum

Recommended Use

This sump kit is highly recommended with FASS Titanium Signature Series systems, especially higher-flow kits, where the larger suction pickup and fuel reservoir improve overall fuel delivery.

Part Number: SK5501
