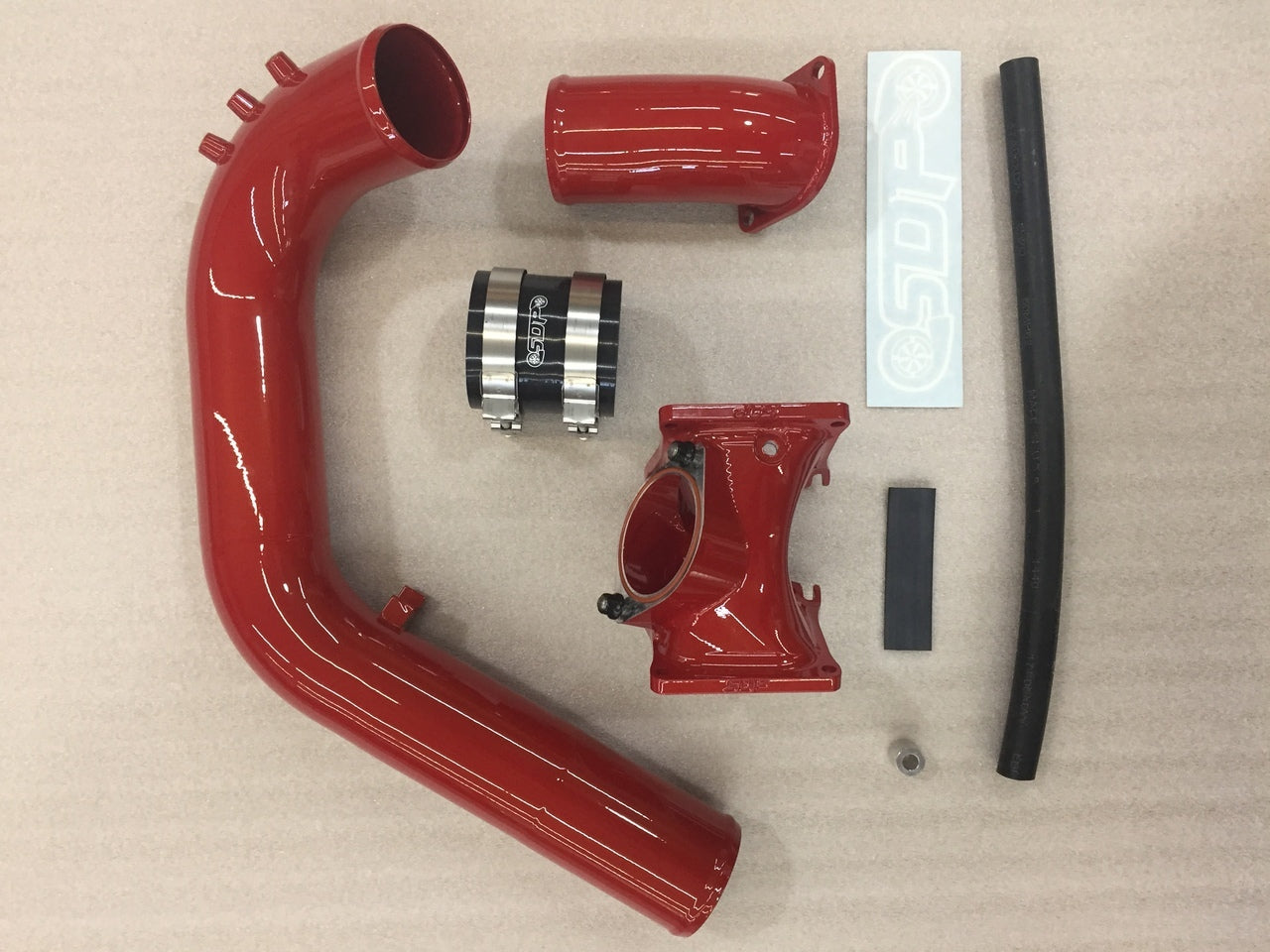

SDP 3" High-flow Billet Y-Bridge & Intercooler Pipe kit - LBZ LMM

SDP 3" High-flow Billet Y-Bridge & Intercooler Pipe kit - LBZ LMM

$795.00 USD
$795.00 USD
Sale Sold out
Shipping calculated at checkout.

SDP 3" High-flow Billet Y-Bridge & Intercooler Pipe kit - LBZ LMM

 *Cannot be sold or shipped to California addresses*



This is our new high-flow billet 3" Y-bridge with a full 3” bore! We used computational fluid dynamic software to test the air flow and turbulence in the factory Y-bridge, and using the results from this testing, we implemented a diverter vane on the inlet that splits the airflow to both runners and maximizes flow potential and minimizes air turbulence. This translates to real world results, you'll notice quicker responsiveness and HP gains. Machined on our 5 axis CNC mill and designed in-house, our 6061 billet Y-Bridge not only has a perfect fit, but is the only Y-bridge on the market of its kind. Our 5 axis machine Y-bridge requires less setups than a 3 axis machined part, meaning the flange surfaces are machined in the same operation making for a 100% perfect fit every time. Due to the nature of others hand-fabricated units, welding them results in warpage and distortion, they will never fit 100% perfectly. Others 3-axis machined Y-bridges require multiple setups that add time(cost to you) and the potential for human error with misalignment that you will notice on install.

With our steel bolt-on neck, there are no worries about clamping the T-bolt clamp to the silicone boot too tightly and bending the tubing (such as with aluminum tubing designs), and the provided silicone o-ring ensures a proper seal at all boost levels. Other cast designs with 3" OD are typically 1/2" smaller ID (inside diameter) than our billet design, which dramatically reduces the amount of air it will flow. With our Y-bridge you get the best of both worlds, higher flow AND strength, along with the easiest install for a 3" Y-bridge available!



-True 3" Y-bridge that is perfect for trucks with small or large twin kits! Also works with the factory turbo configuration.

-Tubing has precisely rolled beads to make install easier and keep the boot from blowing off.

-Includes miscellaneous parts which are all made in the USA such as the black aramid reinforced silicone boots, T-bolt clamps, heat shrink wrap, high temp silicone O-ring and any necessary mounting hardware.

-Includes both Intake runner to Y-bridge gaskets

-The 09-10 trucks require a MAP sensor seal which is included in the kit.





The driver side intercooler pipe strap connects the top of the driver side intercooler pipe to the top of the turbo compressor housing to prevent the intercooler pipe from blowing off the turbo in high boost situations.



The Y-bridge, studs, intercooler plumbing and intake horn are all manufactured under the roof of SDP's shop with our custom powdercoating to top it off in any color that you choose.



This kit works on 06 LLY and 06-07 LBZ's



*Competition use only!

*No refunds on custom color requests or installed products

Current lead time for fabricated & powder coated parts is 30-40 business days from the time order is placed until it ships, we cannot guarantee the time frames as there are some elements out of our hands which gets passed down to us from certain suppliers on material. By purchasing this product, you agree to the delays and we cannot refund without a cancellation fee once the order is in process.
