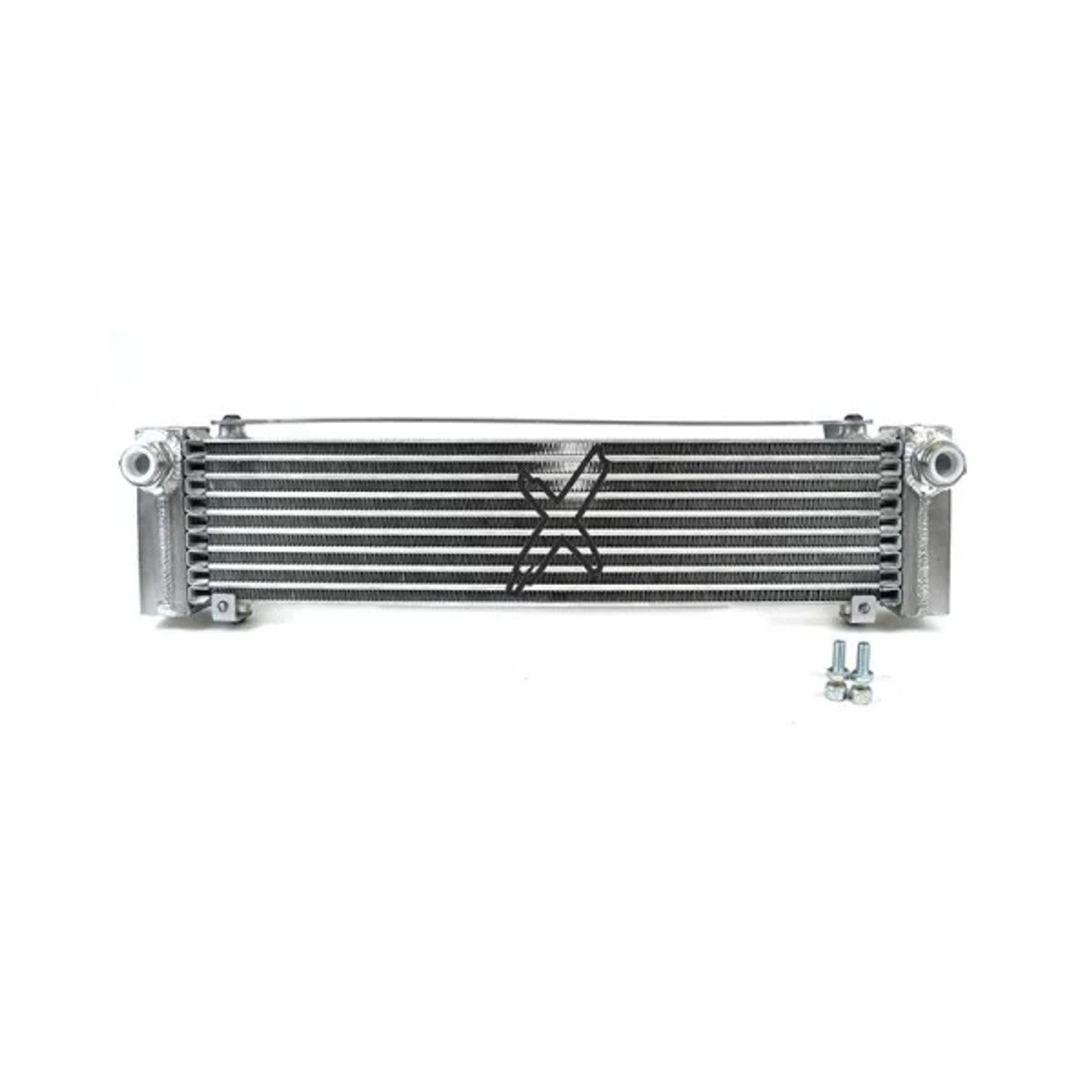

XDP X-TRA COOL DIRECT-FIT TRANSMISSION OIL COOLER 2006-2010 GM 6.6L DURAMAX

Blessed Performance can upgrade the factory trans cooler in a 2006-2010 GM 6.6L Duramax LBZ/LMM with the XDP X-TRA Cool Direct-Fit Transmission Oil Cooler. Manufactured to provide you with the ultimate in strength and durability, XDP’s X-TRA Cool Transmission Oil Coolers are made using techniques borrowed from the HD and semi-truck industry. X-TRA Cool Oil Coolers feature a high-efficiency core to maximize cooling potential for your Allison transmission. Each kit comes ready to install with the brackets, hardware, and necessary fittings to make this a bolt-on installation.



• Direct-Fit
• Replaces Factory Cooler
• Upgraded Design For Increased Durability

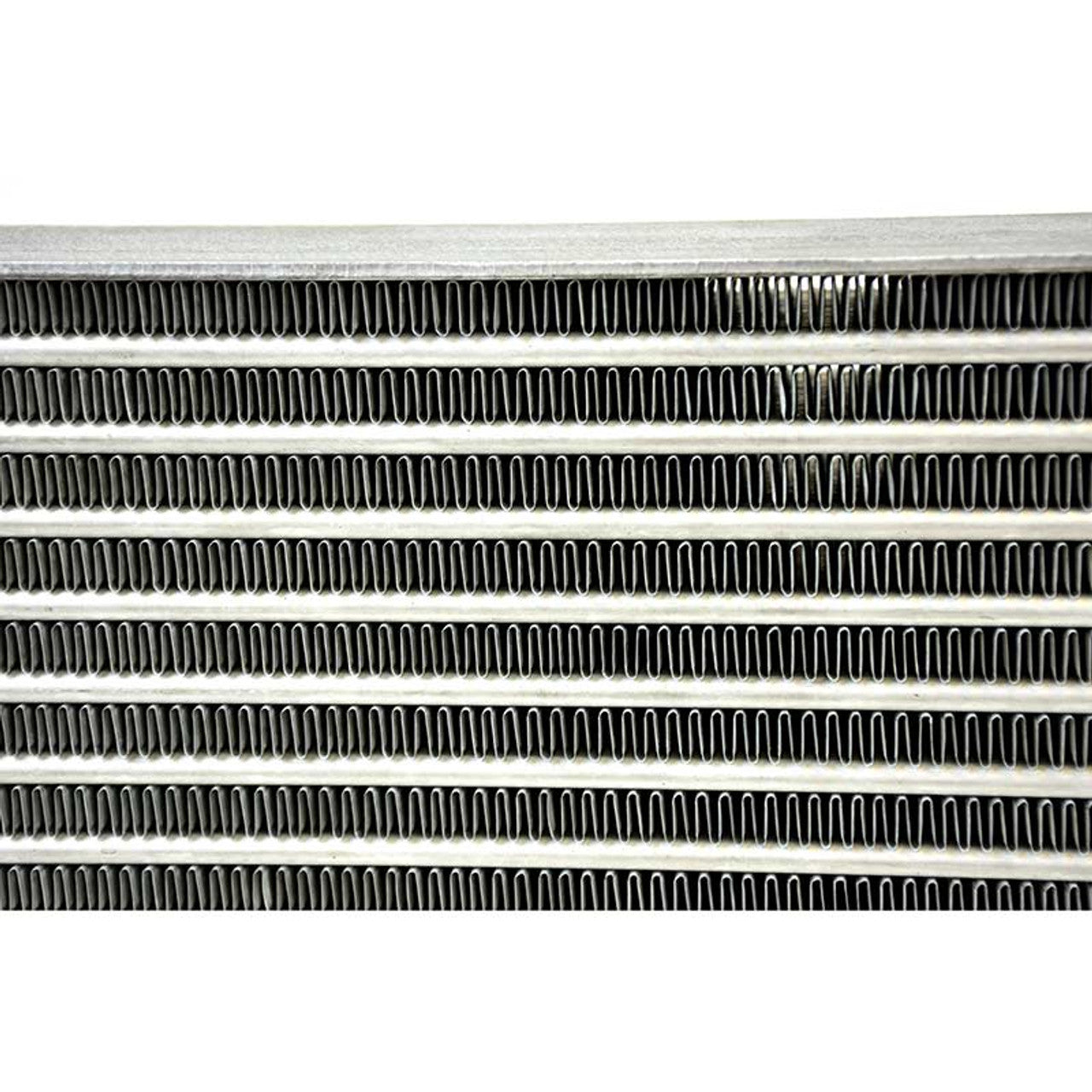

• High-Efficiency Core To Maximize Cooling

Core Width: 20"

Core Height: 4-5/8"
Core Thickness: 2"

Overall Length: 23"

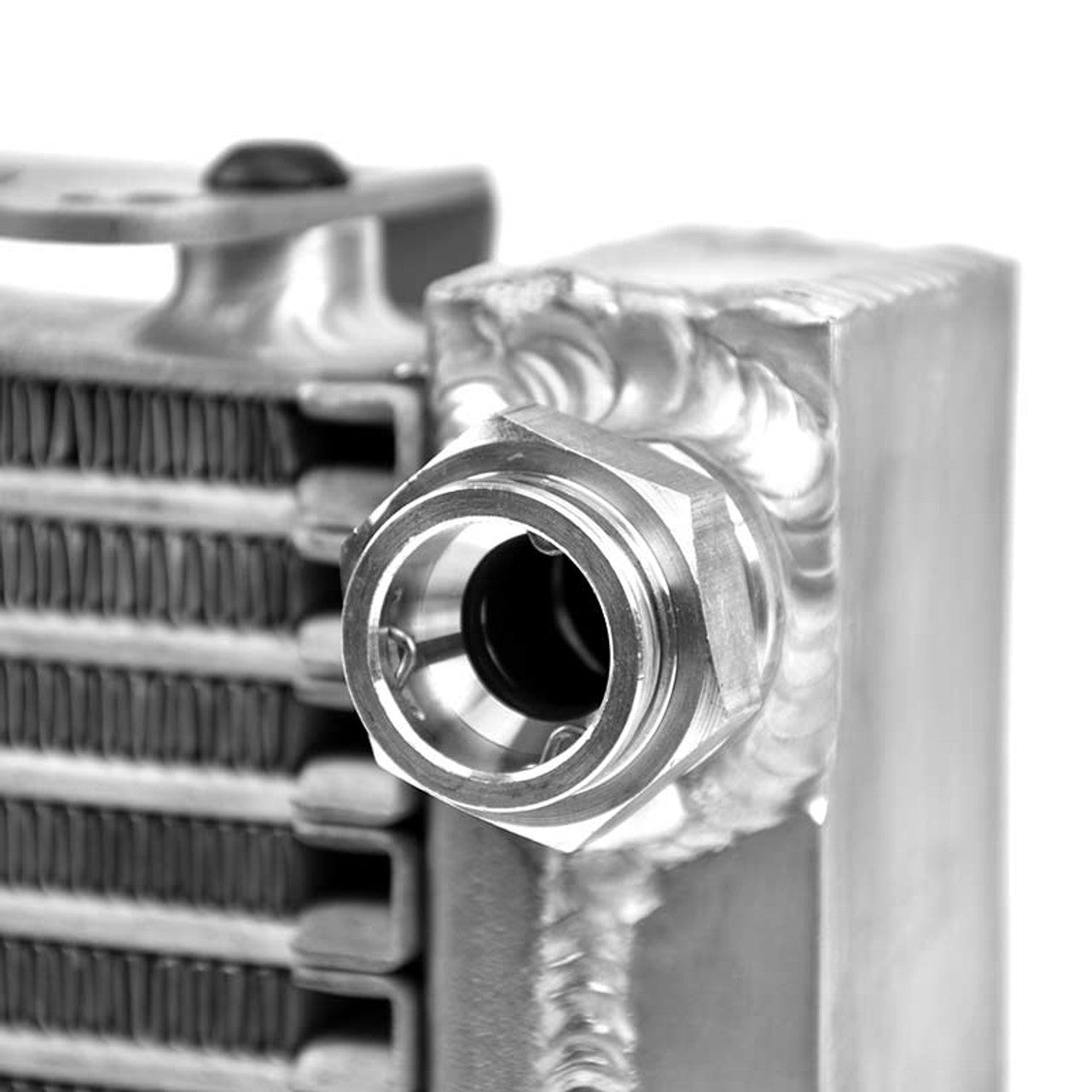

Cooler Fittings: 7/8-14 UNF

App Notes:

XDP cannot guarantee fitment with all aftermarket transmission lines.

Please match aftermarket lines with the cooler fittings specified above.
